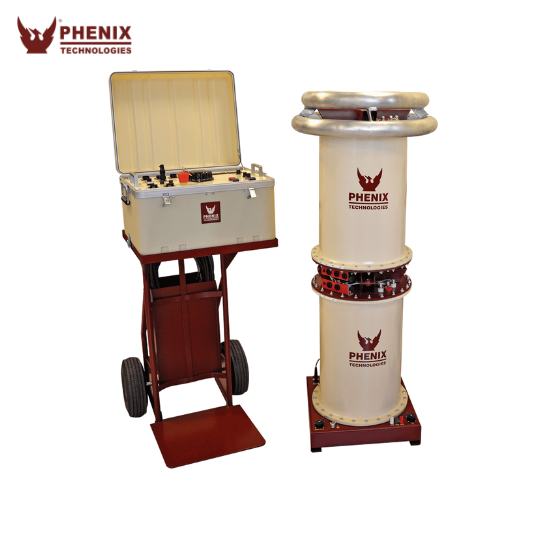

This portable rugged line of AC high voltage test equipment is ideally suited for use in the field or in the laboratory. The 6CP and 6CB line offers a complete test system in a mobile package. All units use a combination control and regulator enclosure and a separate high voltage section.
Description
The 6CP system is equipped with advanced digital metering, and control and protection devices which are easy to use and provide the operator with all necessary information to safely operate the system.
The 6CB system is equipped with a 7” Full-Color TouchScreen display with auto-ranging voltage and current meters plus many other additional features.
The Metering Guard Mode allows accurate measurements of the high voltage test specimen leakage current by bypassing stray capacitive currents. The high voltage section consists of a specially designed oil insulated high voltage transformer characterized by use of an isolating cylindrical housing mounted on a rugged steel base. The high voltage output is equipped with a corona free aluminum shielding electrode. The high quality design and construction is key to the superior partial discharge performance of the 6CP and 6CB line.
