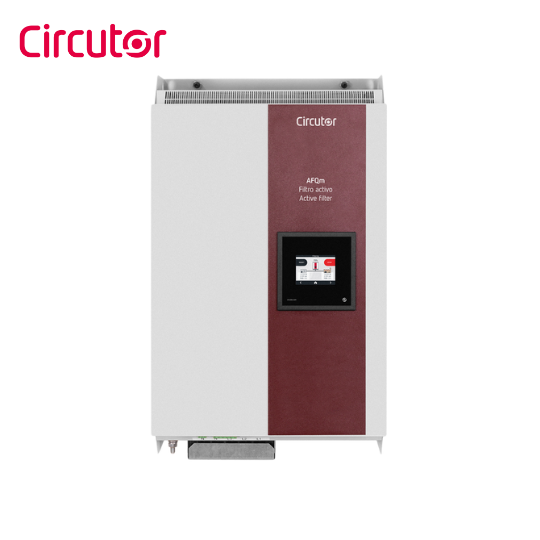

The AFQm series is designed to mitigate harmonics and compensate reactive power in electrical installations.Models differ based on system configuration, voltage range, current capacity, and mounting type:
System Configuration:
3W Models:Suitable for three-wire systems.
4W Models:Designed for four-wire systems, capable of handling neutral currents.
Voltage Range:
Models operate within different voltage ranges, such as 208–400 V or 400–690 V, to accommodate various installation requirements.CIRCUTOR
Current Capacity:
Options include models with varying filtering capacities, for example:
AFQm-4WF-060M-400:
System: 4 wires, 230–400 V
Phase Current: 60 A
Mounting: Wall-mounted
[More Info]
AFQm-3WF-300C-480:
System: 3 wires, 230–480 V
Phase Current: 300 A
Mounting: Floor-mounted
[More Info]
AFQm-3WF-280C-690:
System: 3 wires, 400–690 V
Phase Current: 280 A
Mounting: Floor-mounted
[More Info]
Mounting Type:
M Models:Wall-mounted units, typically with lower current capacities.
C Models:Floor-mounted units, designed for higher current capacities
