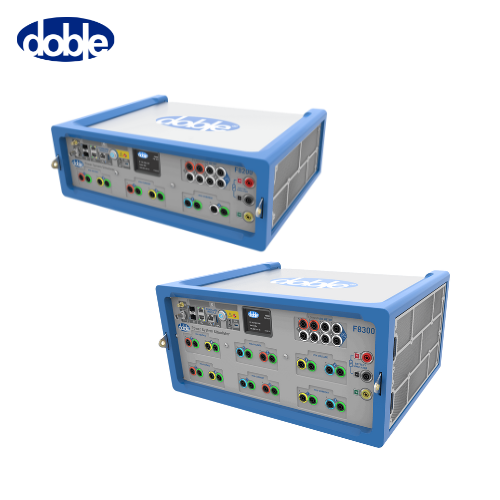

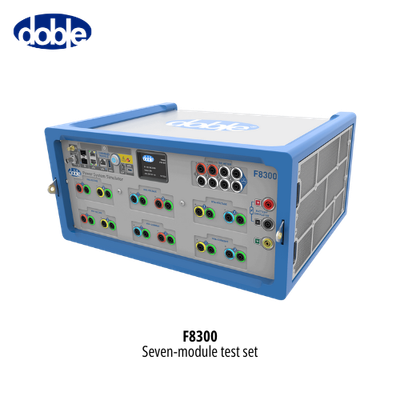

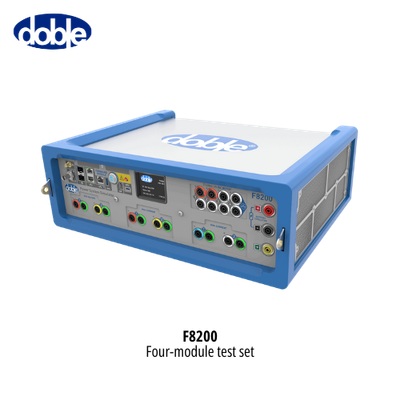

F8000 Series

A compact design with next-level protection testing performance.

Use a F8 Series for single and multi-phase test cases in your conventional, digital, or hybrid protection schemes.

Features & Benefits

• Instrument chassis accommodates custom configurations of up to four F8 modules.
• State-of-the-art components for precise analog and digital testing.
• Internal timing and synchronization that supports GPS, IRIG-B, PTP, USB, and copper/fiber Ethernet.
• Chassis designed for easy replacements of modules.
• Can be adapted for new test cases by installing different F8 modules.
• Provides flexibility, features, and performance needed for requirements of Generation, Transmission, and Distribution protection testing.
• Seamless compatibility with your Protection Suite v5 and RTS v7 test procedures.
• IEC 61850-compliant.
• Color programmable LED rings for visual recognition of sources and contact status.
• Corner-and-edge protective bumpers and carrying accessories for portable units or mounting hardware for installing units in 19” racks.
