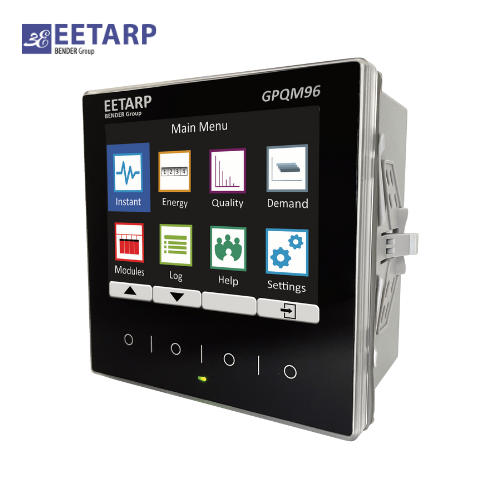

The digital universal measuring device GPQM96 is suited for measuring and displaying electrical quantities of electricity networks. The range of measurements extends from voltages and currents to power and energy meters to measured quantities of the voltage quality, such as THD and the individual harmonics up to the 63rd order. The accuracy of active energy measurements corresponds to class 0.2S in accordance with DIN EN 62053-22.
The GPQM96 is suitable for use in 2-, 3- and 4-wire systems and in their respective versions as TN, TT and IT systems. This allows monitoring single and polyphase systems. With its standardized dimensions of 96 x 96 mm, the device is intended for front panel mounting.
FEATURES:
Accuracy class according to IEC 62053-22: 0.2 S
High Resolution Failure Record with 4kHz
Harmonics measurement up to 63rd order
Colorful LCD interface
Support voltage sag, swell and SOE events recording
Full Real-time Data Measurement
3 current and 3 voltage inputs
8MB internal memory
2 digital input / 2 relay output (optional module for additional DI/DO/AI/AO)
