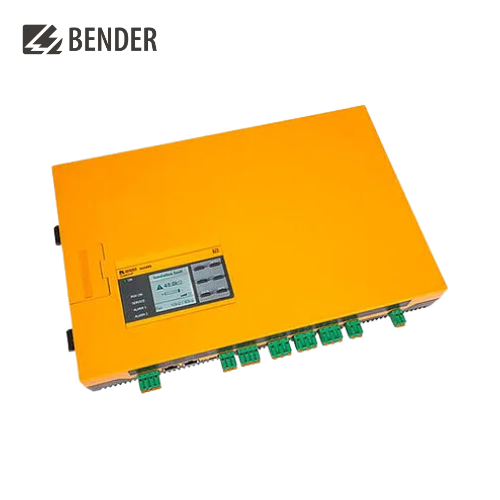

The ISOMETER® isoxx1685Dx-x25 is used for insulation monitoring of extensive IT systems. The specially developed measurement method monitors the insulation resistance also in installations where extremely high system leakage capacitances against earth exist due to interference suppression methods. Adaptation to system-related high leakage capacitances also occurs automatically.
The ISOMETER® iso1685Dxx generates locating current pulses required for insulation fault location. That allows the localisation of the insulation fault using permanently installed or mobile insulation fault locators.
Features
ISOMETER® for IT AC systems with galvanically connected rectifiers or inverters and for IT DC systems (IT = unearthed systems)
Automatic adaptation to the existing system leakage capacitance
Combination of AMPPlus
and other profile-specific measurement methods
Two separately adjustable response value ranges of 1 kΩ…10 MΩ for Alarm 1 and Alarm 2
High-resolution graphical LC display
Connection monitoring (monitoring of the measuring lines)
Automatic device self test
Graphical representation of the insulation resistance over time (isoGraph)
History memory with real-time clock (buffer for three days) for storing 1023 alarm messages with date and time
Freely programmable digital inputs and outputs
Remote setting via the Internet or Intranet (COMTRAXX® gateway)
Worldwide remote diagnosis via the Internet (made available by Bender Service only)
RS-485 interface for data exchange to other Bender devices
