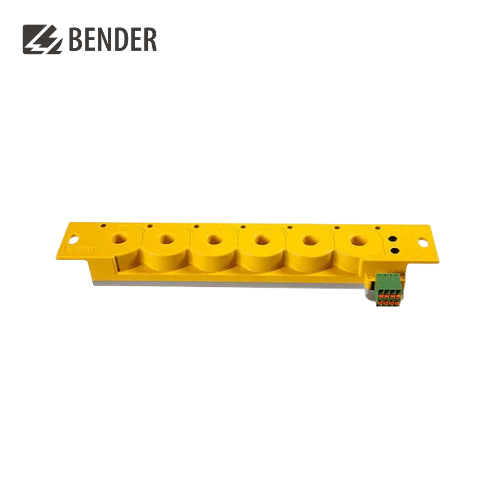

The insulation fault locator EDS150 in conjunction with the ISOMETER®, are designed for insulation fault location in unearthed power supplies (IT systems). The locating current pulse generated by the ISOMETER® are detected using the integrated measuring current transformers and evaluated by the insulation fault locators. The integration of six measuring current transformers in an EDS150 permits all current-carrying conductors of an outgoing line to be routed through. The response time for an alarm message inclusively indication on the respective display device is max. 8 s (e.g. MK2430).
A total of 88 EDS150 devices can be connected via an RS-485 interface (BMS protocol). Hence, up to 528 circuits can be monitored. Activities on the BMS bus are indicated by an alarm LED.
Features
Insulation fault location in AC, AC/DC and DC IT systems
6 measuring channels with measuring current transformer per EDS150
Up to 528 measuring channels can be combined by the BMS bus in the IT system being monitored: 88 x 6 measuring channels
Response sensitivity EDS150: 5 mA
A response time of up to 8 s in the AC system acc. to IEC 61557-9
