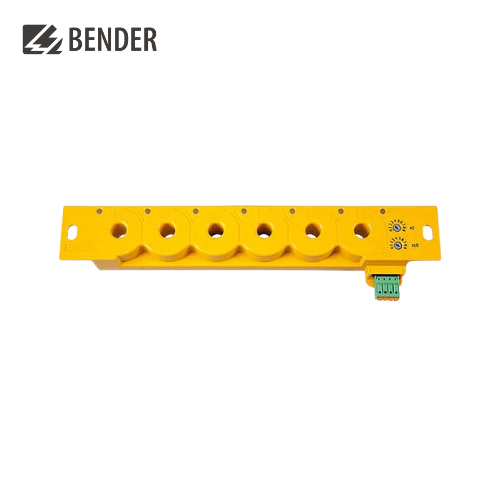

The six-channel RCMS150… residual current monitors are intended for measuring AC and DC fault currents in earthed power supplies which can be caused by insulation faults on loads. The devices are able to measure residual currents up to I
Δ = 500 mA in a frequency range of DC…2 kHz. They are suitable for applications with a load current of up to 32 A and are thus intended in particular for monitoring final circuits. Two separately adjustable response values allow a distinction to be made between prewarning and alarm.
Features
Continuous residual current monitoring in compliance with DGUV Vorschrift 3 (German Social Accident Insurance Regulation 3)
AC/DC sensitive residual current monitor type B with 6 channels K1…6 (each channel features 2 measuring channels: 1 x RMS, 1 x DC)
Ideal for applications with space limitations
Easy DIN rail or screw mounting to standard distribution panels
2 separately adjustable response values (DC or RMS) per channel
Continuous self monitoring
Fully shielded measuring current transformers to avoid external influences due to magnetic fields that may cause disturbances
Compatible with Bender gateways of type COM465IP, CP9…
