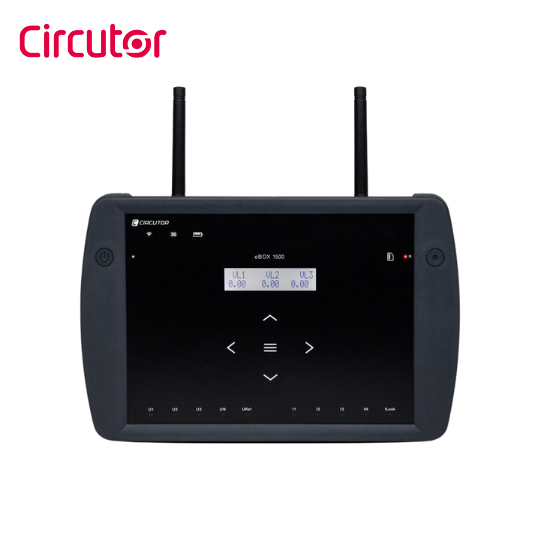

MYeBOX-1500 Series

The MYeBOX-1500 is a comprehensive portable power analyzer capable of measuring and recording a wide array of electrical parameters in both single-phase and three-phase systems.

Key Features:

• 4 voltage measurement inputs ( U 1, U 2, U 3, U n)
• 4 current measurement inputs ( I 1, I 2, I 3, I n)
• Measurement of the main electrical parameters
• Measurement of network quality parameters
• True RMS measurement (TRMS)
• Measurement of consumption and generation (4Q)
• Voltage quality event log, according to EN 61000-4-30
• Transients log
• Recording of the wave shape associated with the quality events and transients
• Measurement according to EN 61000-4-30
• Power supply is independent of the measurement
• Recording of the wave shape for each recording period
• LCD Screen
• Capacitive keypad
• Micro-USB port to download data
• Automatic detection of clamps
• Identification of phases with colours
• Compatible with clamps with EEPROM
• Recording of system events (EVA)
• NTP synchronisation
• Sending of alarms via e-mail
• Wi-Fi communications (access point/terminal)

• 1 voltage measurement input U ref
• 1 leakage current measurement input
• 2 transistor inputs to centralise impulses / tariff / state
• 2 transistor outputs for alarms
• 3G/4G communications
